UBI-5390XC/SF Small Format Non-rechargeableLiMnO2/CFx Battery

  • Small format is 31% lighter than BA-5590U with 7% more energy
  • Small format is approximately half the size and weight of Ultralife’s full-size BA-5390A/U with 70% of energy
  • State-of-Charge indication to fully utilize battery capacity. 5 distinct ranges from90% to 10%
  • No voltage delay
  • Improved low temperature performance
  • CDD indication displays when battery is ready for disposal
  • Lighter weight and smaller size
  • Shelf life up to 12 years with 80% capacity
Available in box quantities of 4 with a minimum order quantity of 4 boxes
Need pricing/lead time? Click here to contact us

Have a question about this product?

We're here to help. Use the form below to ask about availability, specs, customizations, or anything else - our team will get back to you quickly.

Inquire about this product
  •
  • Specifications
  • Specifications
  •
  • Drawings
  • Drawings
  •
  • Applications
  • Applications
  •

Product Type Non-Rechargeable, Battery
Chemistry Li-CFx / MnO2
Voltage (Range) 16.5V to 10.0V
Certifications UN 38.3

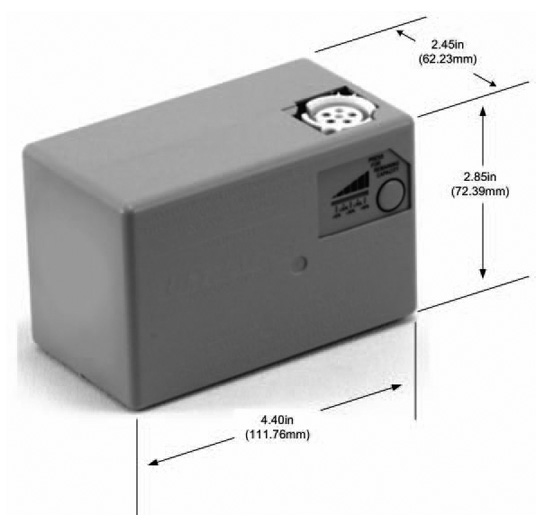

Dimensions 4.4in x 2.45in x 2.85in
Class 9 Yes
State of Charge Display Yes
Operating Temperature -40 to 55 °C
Storage Temperature -40 to 80 °C
SmartCircuit Yes

Drawings

Common Applications
  • Smaller alternative for BA-5590/U and BA-5390A/U Li-S02 (NSN: 6135-01-036-3495and 6135-01-547-6060) batteries
  • AN/PRC-119 SINCGARS
  • Portable 12V devices
  • More than 50 other military applications
Loading…
PRODUCT DOWNLOADS
  • Lithium Battery Test Summary - UB0031
  • NIE 13.1 Executive Briefing - UB0031
  • Safety Datasheet for Li-CFx/MnO2 - English
  • UB0031 Technical Datasheet
  • XX90 Battery & Accessory Reference Guide
  • XX90 Family of Products White Paper
